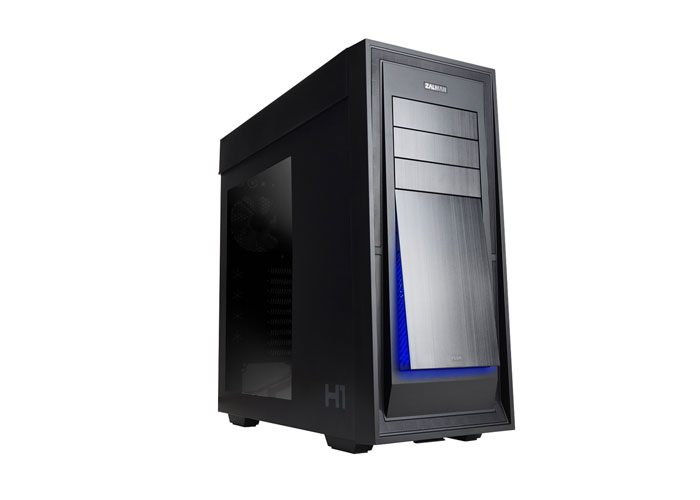

Zalman H1 ATX Full Tower Kasa

ÜRÜN KODU 14113
BARKOD 8809213766657
Zalman H1 ATX Full Tower Kasa


AHV Cooling System
AHV function allows the product to operated in low noise under the temperature that the user had set, and when the temperature goes over the set up temperature the upper vent opens up and the fan starts operating, ventilating the heat and returns to the low noise mode.

Modular Type Fan Controller
Modular Type of fan controller that independently controls front, upper and rear fans

Dual Radiator Water Cooler installable
Extra space for dual radiator water cooler installment

Highly Functional 200mm LED Fan
Highly functional and low noise 200mm LED fan is installed in the front, excellent in cooling and the blue LED providing tuning effect

Exclusive Power Supply Cooling
The bottom air vent directly cools the power supply maximizing efficiency and stability

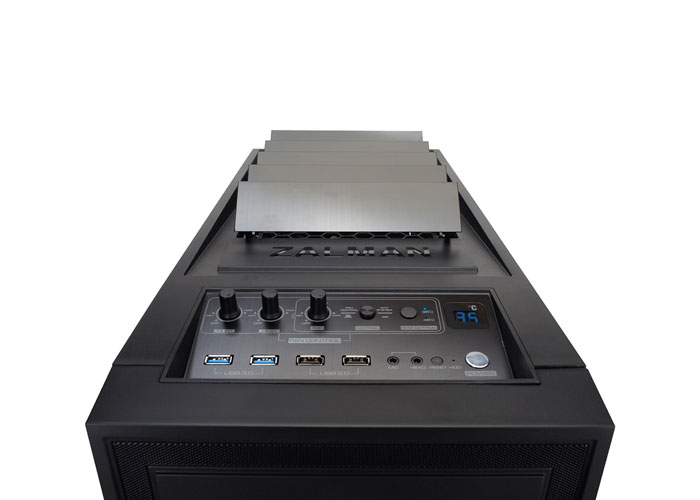

User-centered convenient Interface
USB 3.0 port, audio port/power & reset button are all located in the upper part of the product for users' convenience

Aluminum style applied foreside and upper door
Black brushed aluminum style door gives a luxurious look and feel. The frontal panel doors maybe opened when a faster cooling is needed

Dust Filter Installed
Prevents dust from entering the frontal and bottom vent, extending the product's life and increasing cooling effect

Side Acryl Panel provided
Side Acryl Tuning provided for users to view the interior.

Black Chassis finish
The internal Chassis is done in black, giving complete and elegant finish

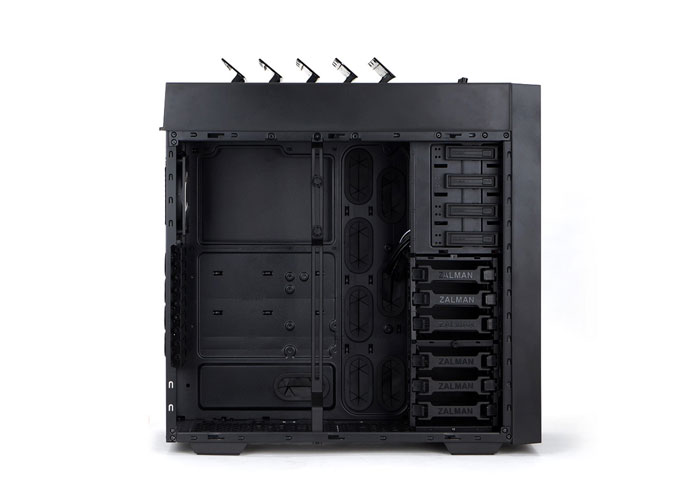

Excellent Expandability and Wide Space
Full tower's excellent expandability gives enough room to install multiple HDD/SDD, 160mm tall CPU cooler, 350mm VGA card. dual radiator water cooler

Supports Hot-Swap installment
Through Hot-Swap Bay data storage HDD maybe removed and installed easily and quickly

Anti-vibration Tool Free HDD installed
Tray for mounting hard disc is design in Tool-Free server form Mounting hard-disc is very easy and easy to maintain Applied anti-vibration rubber

HDD Bay Module Design
HDD Bay can be modularized and can get rid of unneeded bays

Anti-vibration and noise absorbing Stanchion
Rubber Stanchion has been applied at the bottom of the case and Power Supply to prevent sliding and vibration noise

Hole for organizing cables and cords
A hole for organizing cables is provided so that the internal space may be used efficiently


Enclosure Type Full Tower Case

Dimensions

237(W) x 551(H) x 569(D)mm

Motherboard Compatibility

Standard ATX / Mini-ITX / Micro ATX / LX-ATX / E-ATX

Power Supply Compatibility

Standard ATX / ATX12V

PCI/AGP Card Compatibility

Full Size 360mm (14.1inch)

Drive Bays 5.25" 3
3.5" 7
Hot-swap 3.5"/2.5" HDD x 3EA
Common Internal Bay 5.25" / 3.5" / 2.5" x 1

Cooling
Components
(Fans)

Top

120mm Fan Vent x 2 (2 Fan included)

Rear

120mm Fan Vent x 1 (1 Fan included)

Front

200mm LED Fan x 1 (1 Blue LED Fan included)

Cooling Kit

120mm Additional Fan x 1 (1 Fan optional (Internal))

Fan controller Simultaneously Control 2 Channels
VGA Guide Yes
Acrylic Side /Vent Yes
I/O Ports Headphones x 1, Mic x 1, USB 2.0 x 2, USB 3.0 x 2,
Temperature Display
Acrylic Side Yes
Expansion Card Slots

9 Slots

Sürücüyü indirmek için TIKLAYIN

3.5 Hdd Yuva7
5,25 Yuva3
AçıklamaKasa
Anakart DesteğiMicro ATX , Mini-ITX
Boy237x551x569 mm
Fan (Arka)120mmx1
Fan (Ön)200mmx1
Fan (Üst)120mmx2
Genişleme Slotu9
MarkaZalman
ModelH1
ÖzellikATX Full Tower
PortHeadphones x1,Mic x1,USB 2.0 x 2,USB 3.0 x 2
