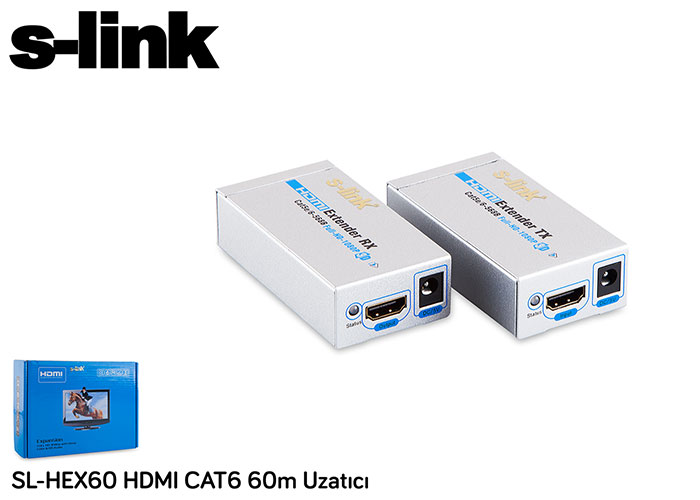

S-Link SL-HEX60 HDMI CAT6 60m Extender
PRODUCT CODE
16023
To download the driver CLICK
| Explanation | HDMI 1.4 Extender - Supported 3D |
| Brand | S-Link |
| Model | SL-HEX60 |
| Color | Gray |
| Communication distance | Max. 60m |
| Resolution | 1920*1080p @60Hz |
| Supported Display | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Frequency | 165MHz (Max. pixel frequency) |
| Operating temperature | (-15) - 55 Degrees |
| Power source | 2 Pieces DC 5V, 1.5A |
| Power consumption | Less than 3.5W |
| HDMI | Signal: Compatible with HDCP 1.2 |
| Product Material | Metal |

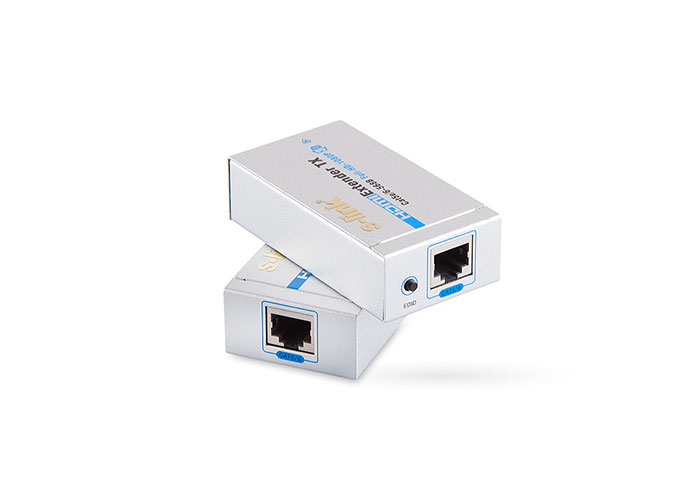

| Connection | Cat6(Recomended), Cat5 |

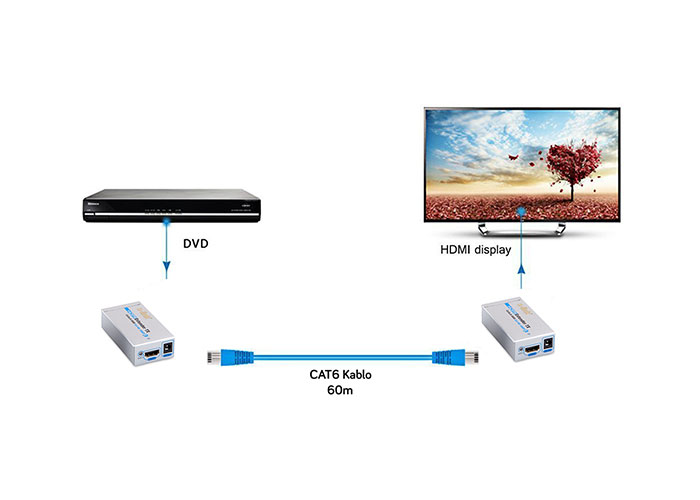

| Usage Type | TX: Connecting withTranceiver ex: PC, Video Rcorder, RX: Connecting with Receiver ex: Screen/Monitor |
| Product size | TX: 24mm x 46mm x 83mm, RX: 24mm x 46mm x 83mm |
| Product Weight | 325gr ±5gr (Including AC/DC adapters) |

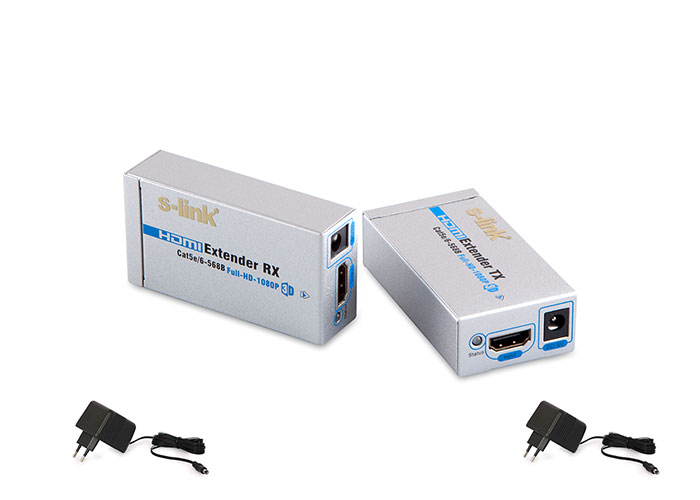

| Package Included | Receiver + Transmitter + 2 Pieces AC/DC Power Adapter + User Manual |
| Gross Weight | 432gr ±5gr |
