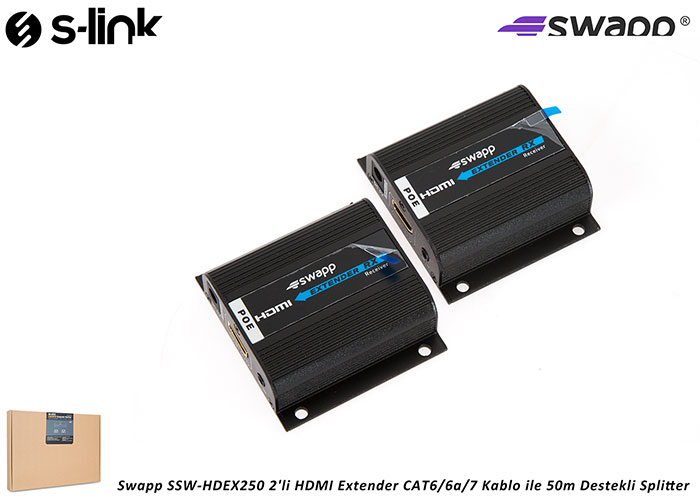

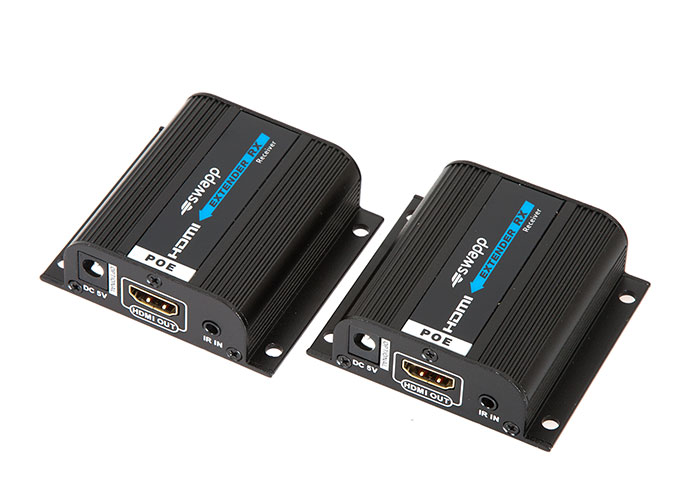

S-Link Swapp SW-HDEX250 2-pin HDMI Extender CAT6 / 6a / 7 Cable with 50m SupportedSplitter

S-Link Swapp SW-HDEX250 2-pin HDMI Extender CAT6 / 6a / 7 Cable with 50m SupportedSplitter

PRODUCT CODE 23681
BARKODE 8680096046278
S-link Swapp

Share on Social Media

Was the product as you expected?

SPECIFICATIONS

You can list all the technical specifications of this product! Is this your product?

ExplanationHDMI 1.3 Extender - Supported EDID
BrandS-link Swapp
ModelSW-HDEX250
ColorBlack
Communication distanceMax. 50m
Resolution1920*1080p @60Hz
Supported Display480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
HDMI Version1.3
Frequency20-60 kHz for IR Remote Kontrol
Operating temperature0 - 60 Degrees
Power source5V 2A 1Pcs
Power consumptionLes than 8W
HDMISignal: Compatible with HDCP 1.2
Product MaterialMetal
FeatureTransport Protocol: HDbitT
ConnectionCat6/Cat6a/Cat7
UsageTX: Connecting withTranceiver ex: PC, Video Rcorder, RX: Connecting with Receiver ex: Screen/Monitor
HDCP VersionCompatible with HDCP 1.4, HDCP 2.2
Product sizeTX: 157.8*62*21.6mm /RX: 71.6*66.6*22.6mm
Product Weight516gr ±5gr
Package Included2 pcs Receiver + Transmitter + 1 pc Power Adapter+ 2 Pcs IR Cable + User Manual
Gross Weight750gr ±5gr
